19.00m Stern Trawler

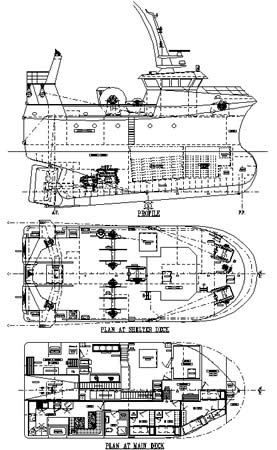

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
19.00m
Length B.P.
15.00m
Breadth Mld.
7.80m
Depth Mld.
3.90m

Main Engine
600hp @ 1350rpm
Propeller Diameter
2400mm in Nozzle
Bollard Pull
10 tonne


DECK MACHINERY
CAPACITIES
3 x Split Winches
2 x Split Net Drums
Gilson Winch
Autotrawl
Discharging Crane
Cod End Winches
Oil Fuel
20,000 litres
Fresh Water
4,000 litres
Fish Room
54 cu.m
Freezer Room
30 cu.m

Crew
8 men
LICENCE REQUIREMENTS
Tonnage
175 GRT
VCU's
350 Units




Illustration
