20.00m Stern Trawler

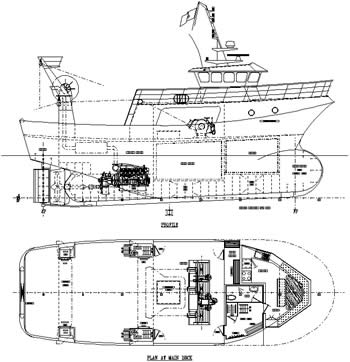

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
20.00m
Length B.P.
18.00m
Breadth Mld.
6.70m
Depth Mld.
3.60m

Main Engine
800hp @ 1800rpm
Propeller Diameter
2100mm in Nozzle
Bollard Pull
12.5 tonne


DECK MACHINERY
CAPACITIES
3 Barrel Winch
2 x Single Net Drums
Gilson Winch
Crane

Oil Fuel
20,000 litres
Fresh Water
4,000 litres
Fish Room
54 cu.m
Freezer Room
30 cu.m

Crew
8 men
LICENCE REQUIREMENTS
Tonnage
175 GRT
VCU's
350 Units




Illustration
