20.00m Stern Trawler

20.00m Stern Trawler GA
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
20.00m
Length B.P.
17.80m
Breadth Mld.
7.00m
Depth Mld.
3.70m

Main Engine
500hp
Propeller Diameter
1900mm in nozzle
Bollard Pull
8 Tonne


DECK MACHINERY
CAPACITIES
Net Drum
Windlass
Double Barrel Winch



Oil Fuel
20,000 litres
Fresh Water
3,000 litres
Fish Room
54 cu.m

Crew
6 men

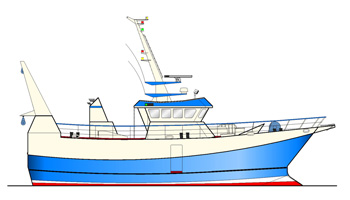

 20.00m Stern Trawler Profile
