23.90m Stern Trawler

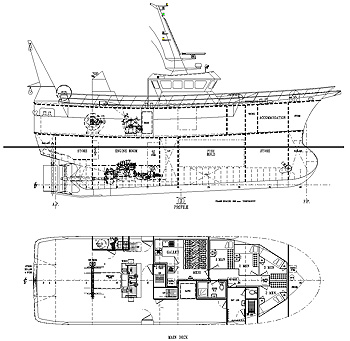

23.90m Stern Trawler GA
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
23.90m
Length B.P.
20.50m
Breadth Mld.
7.20m
Depth Mld.
3.90m

Main Engine
500-600hp
Propeller Diameter
CPP 2050mm in Nozzle
Bollard Pull
10.5 Tonne


DECK MACHINERY
CAPACITIES
Double Barrel Winch
Net Drum
Gilson Winch
Oil Fuel
34,900 litres
Fresh Water
10,600 litres
Crew
8 men

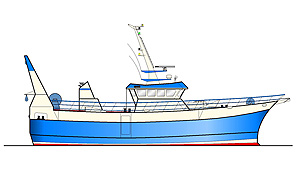

 23.90m Stern Trawler Profile
