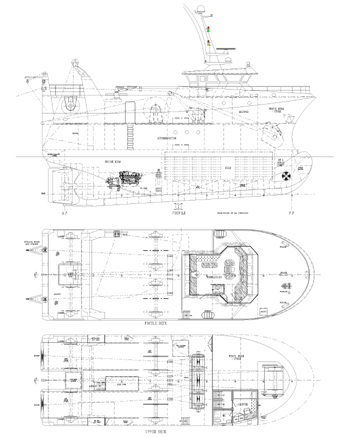

23.95m Stern Trawler

PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall

24.00m
Length B.P.
20.00m
Breadth Mld.
8.00m
Depth Mld.
3.90m

Main Engine
1x 775hp @ 1200 RPM
Propeller Diameter
1x 2400mm in nozzle
Bollard Pull
11.5 T
Bow Thruster
125hp

DECK MACHINERY
CAPACITIES
1x 3 Drum Trawl Winch - 25 T
1x Pair Seine Winch
2x Split Net Drum - 2x 10 T
2x Single Net Drums - 1x 10 T
1x Gilson Winch - 1x 5 T
1x Unloading Crane - 8 Tm
2x Cargo Winch - 2x 2 T
Oil Fuel
35,000 Lts
Fresh Water
15,000 Lts
Fish Room
125 cu.m

Crew
8 men
