28.00m Stern Trawler

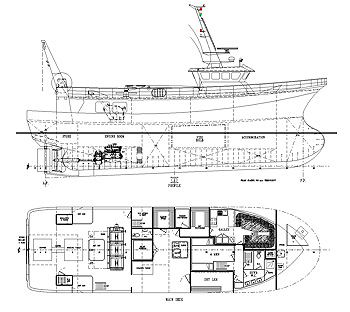

28.00m Stern Trawler GA
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
28.00m
Length B.P.
24.00m
Breadth Mld.
8.00m
Depth Mld.
3.90m

Main Engine
950hp
Propeller Diameter
2100mm in Nozzle
Bollard Pull
13 Tonne


DECK MACHINERY
CAPACITIES
Tripple Barrel Winch
2x Split Net Drums
Bagging Winch
Anchor Windlass
Oil Fuel
117,000 litres
Fresh Water
8,500 litres
Water Ballast
28,000 litres

Crew
16 men

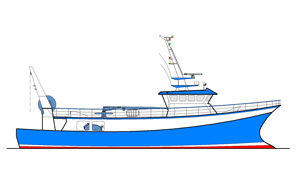

28.00m Stern Trawler Profile
