23.95m Stern Trawler

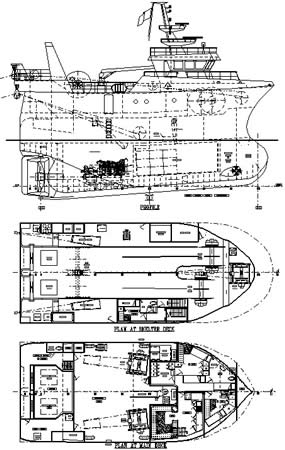

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
23.95m
Length B.P.
20.00m
Breadth Mld.
9.20m
Depth Mld.
4.00m

Main Engine
1500hp @ 1200rpm
Propeller Diameter
2700mm in Nozzle
Bollard Pull
20 tonne


DECK MACHINERY
CAPACITIES
3 x Split Winches
4 x Split Net Drums
Gilson Winches
Autotrawl
Discharging Crane
Anchor Winch
Oil Fuel
52,000 litres
Fresh Water
23,000 litres
Fish Room
160 cu.m

Crew
10 men
LICENCE REQUIREMENTS
Tonnage
337 GRT
VCU's

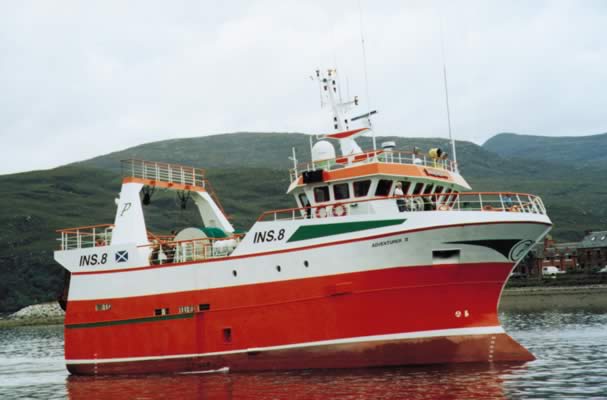

Illustration    Adventurer
