25.00m Stern Trawler

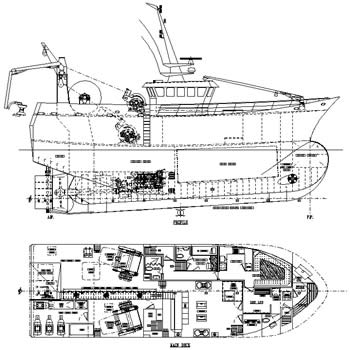

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
25.00m
Length B.P.
20.90m
Breadth Mld.
7.50m
Depth Mld.
4.20m

Main Engine
1200hp @ 1200rpm
Propeller Diameter
2500mm in Nozzle
Bollard Pull
16 tonne


DECK MACHINERY
CAPACITIES
3 x Split Winches
2 x Split Net Drums
Gilson Winches
Autotrawl
Discharging Crane
Anchor Winch
Oil Fuel
40,000 litres
Fresh Water
5,000 litres
Fish Room
130 cu.m

Crew
8 men
LICENCE REQUIREMENTS
Tonnage
230 GRT



Tonnage 230 GT

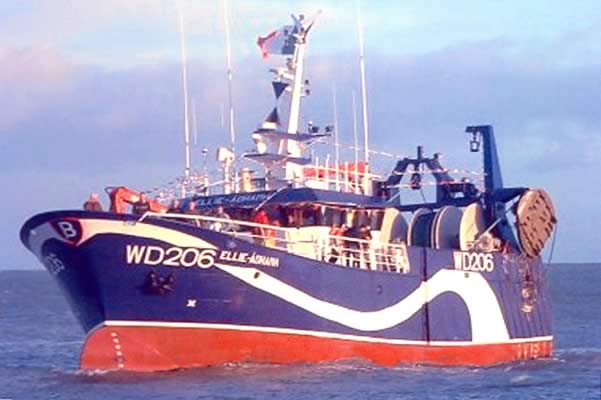

Illustration    Adventurer
