30.00m Stern Trawler

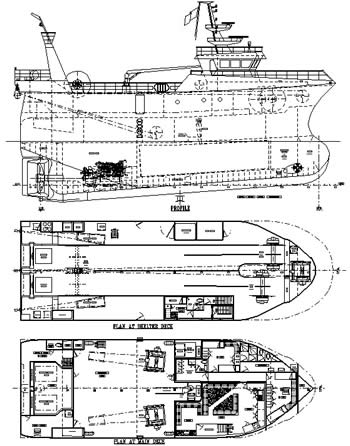

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
30.00m
Length B.P.
26.00m
Breadth Mld.
9.20m
Depth Mld.
4.00m

Main Engine
2000hp @ 1200rpm
Propeller Diameter
2800mm in Nozzle
Bollard Pull
28 tonne


DECK MACHINERY
CAPACITIES
3 x Split Winches
4 x Split Net Drums
Gilson Winches
Autotrawl
Discharging Crane
Anchor Winch
Oil Fuel
80,000 litres
Fresh Water
30,000 litres
Fish Room
250 cu.m

Crew
10men
LICENCE REQUIREMENTS







Illustration
