42.00m Stern Trawler

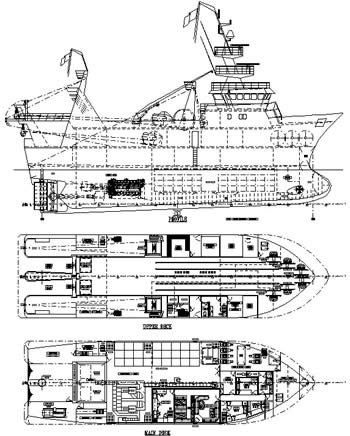

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
42.00m
Length B.P.
35.75m
Breadth Mld.
11.00m
Depth Mld.
4.90m

Main Engine
3000hp @ 1000rpm
Propeller Diameter
3600mm in Nozzle
Bollard Pull
42 tonne




DECK MACHINERY
CAPACITIES
3 x Split Winches
2 x Gilson Winches
1 x Split Drum
Anchor Windlass
6 x Sweep Winches
2 x Bagging Winches
2 x Outhaul Winches
Oil Fuel
130,000 litres
Fresh Water
40,000 litres
Freezer Hold
350 cu.m

Crew
15men
LICENCE REQUIREMENTS







Illustration
