19.00m DOT Tug

MACDUFF "DEE" 19


PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall

19.00m

Length B.P.

16.55m

Breadth Mld.
7.40m
Depth Mld.
3.50m
Main Engines
2 x 1250hp @ 1600rpm
Propeller
2 x 2100mm in nozzle
Bollard Pull
30 Tonnes

DECK MACHINERY
CAPACITIES
Mampaey DOT System - 30T SWL

Windlass


Oil Fuel
30,000 litres
Fresh Water
1,000 litres
Crew
3 men

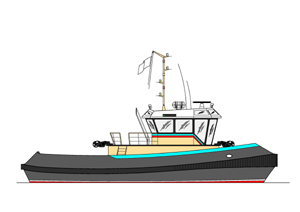

19m Harbour Tug
