25m DOT Tug

MACDUFF "DEE" 25



PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
25.00m
Length B.P.
23.50m
Breadth Mld.
11.40m
Depth Mld.
5.05m

Main Engine

2x 1675hp @ 1600 RPM

Propeller Diameter
2x 2100 ASD
Bollard Pull
45 Tonnes


DECK MACHINERY
CAPACITIES
Mampaey DOT system - 45 T
40T Winch
Windlass
Oil Fuel
100,000 Lts
Fresh Water
10,000 Lts
Crew
3 men

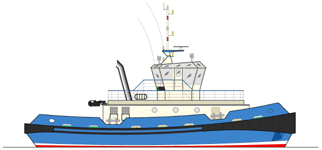

 25m ASD Harbour Tug, Illustration
