40.00m Escort Tug

MACDUFF "TAY" 40

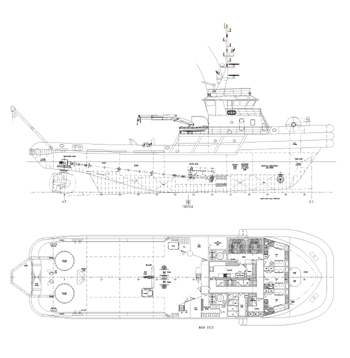

40.00m General Purpose Tug
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
40.00m
Length B.P.
33.50m
Breadth Mld.
11.00m
Depth Mld.
5.35m

Main Engine

2x 2600hp @ 1000 RPM

Propeller Diameter
2x 2600mm ASD
Bollard Pull
65 Tonnes


DECK MACHINERY
CAPACITIES

Towing winch - forward

Towing winch - Aft
Hyd crane - 15 Tm
Mampaey disc hook
Windlass
Oil Fuel
200,000 Lts
Fresh Water
30,000 Lts
Crew
16 men

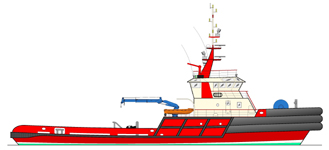

 40.00m General Purpose Tug
