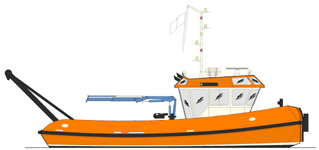

16.00m Harbour Tug

MACDUFF "FORTH" 16



PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
16.00m
Length B.P.
14.65m
Breadth Mld.
6.20m
Depth Mld.
2.90m

Main Engine

2x 800hp @ 1800 RPM

Propeller Diameter
2x 1700mm in nozzle
Bollard Pull
23 Tonnes


DECK MACHINERY
CAPACITIES
Mampaey disc hook - 25 Tonne SWL
Hyd crane - 6 Tm
2 x 7 Tonne winch
'A' Frame Aft (removable)
Plough dredge
Oil Fuel
11,200 litres
Fresh Water
215 litres
Water Ballast
2,000 litres
Crew
2 men




May take some time to become active

when available press play

Click to open 3d pdf

Adobe Reader 8.0 or higher required

File Size 6.1 MB

(opens in new window)
