25.50m Harbour Tug

MACDUFF "FORTH" 25.5

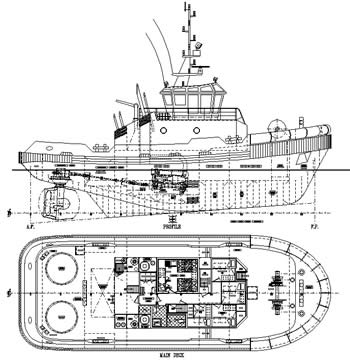

Technical Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
25.50m
Length B.P.

23.60m

Breadth Mld.
9.20m
Depth Mld.
4.70m
Main Engines
2 x 1500hp @ 1600rpm
Propeller
2000mm in Nozzle
Bollard Pull
40 Tonnes

DECK MACHINERY
CAPACITIES
Towing Hook 40Tonne
Winch 40 Tonne Pull

Windlass


Oil Fuel
65,000 litres
Fresh Water
5,000 litres
Crew
4 men
Illustration
