26.00m River Tug

MACDUFF "SPEY " 26

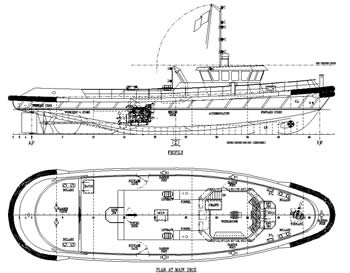

Technical Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
26.00m
Length B.P.

23.35m

Breadth Mld.
7.30m
Depth Mld.
3.00m
Draft
2.00m
Main Engines
2 x 1050hp @ 1600rpm
Propeller
1600mm in Nozzle
Bollard Pull
25 Tonnes

DECK MACHINERY
CAPACITIES
Towing Hook 15 Tonne
Windlass
Oil Fuel
27,000 litres
Fresh Water
4,000 litres
Crew
6 men
Illustration
