40.00m Tuna Purse Seiner

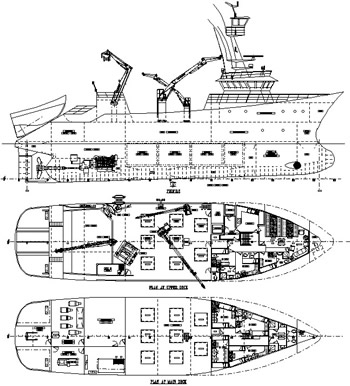

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
40.00m
Length B.P.

35.70m
Breadth Mld.
10.00m
Depth Mld.
4.50m

Main Engine
2500hp @ 1000rpm
Propeller Diameter
2600mm
Bollard Pull
28 tonne


DECK MACHINERY
CAPACITIES
Purse Winch
Cranes
Fish Pump
Skiff
Net Stacker
Oil Fuel
100,000 litres
Fresh Water
30,000 litres
Fish Room
300cu.m

Crew
17 men
LICENCE REQUIREMENTS
Tonnage
VCU's




Illustration
