83.50m Tuna Purse Seiner

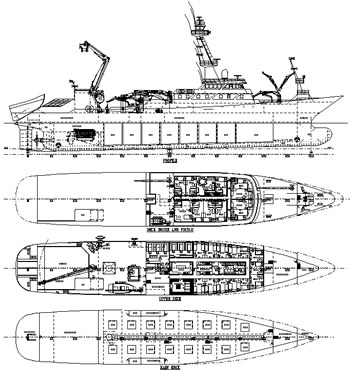

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
83.50m
Length B.P.

72.00m
Breadth Mld.
13.70m
Depth Mld.
6.70m

Main Engine
6200hp @ 1000rpm
Propeller Diameter
4250mm
Bollard Pull
n/a


DECK MACHINERY
CAPACITIES
Purse Winch
Cranes
Fish Pump
Skiff
Net Stacker
Oil Fuel
650,000 litres
Fresh Water
60,000 litres
Freezer Capacity
1800 cu.m

Crew
31 men



Illustration
