14.95m Twin RigTrawler

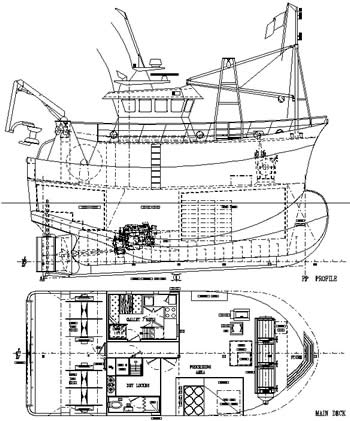

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
14.95m
Length B.P.
13.00m
Breadth Mld.
6.20m
Depth Mld.
3.60m

Main Engine
400hp @ 1800rpm
Propeller Diameter
1600mm in Nozzle
Bollard Pull
7 tonne


DECK MACHINERY
CAPACITIES
3 Barrel Trawl Winch
Unloading Winch
2 x Split Net Drums
Gilson Winch
Power Block & Crane

Oil Fuel
10,000 litres
Fresh Water
8,000 litres
Fish Room
50 cu.m

Crew
4 men
LICENCE REQUIREMENTS
Tonnage
36 GRT
VCU's
227 Units





Illustration
