26.00m Twin RigTrawler

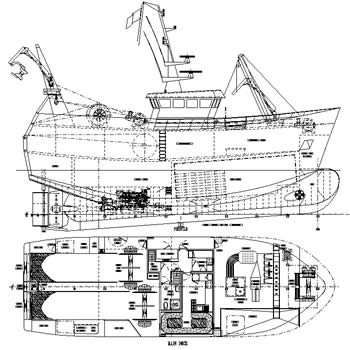

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
26.00m
Length B.P.

22.50m
Breadth Mld.
8.20m
Depth Mld.
4.40m

Main Engine
1200hp @ 1200rpm
Propeller Diameter
2400mm in Nozzle
Bollard Pull
18 tonne


DECK MACHINERY
CAPACITIES
3 x Split Winches
Auxiliary Winch
2 x Split Net Drums
Gilson/Anchor Winch
Power Block & Crane
2 x Single Net Drums
Dog Rope Winch
Oil Fuel
53,000 litres
Fresh Water
9,700 litres
Fish Room
183 cu.m

Crew
10 men
LICENCE REQUIREMENTS
Tonnage
302 GRT

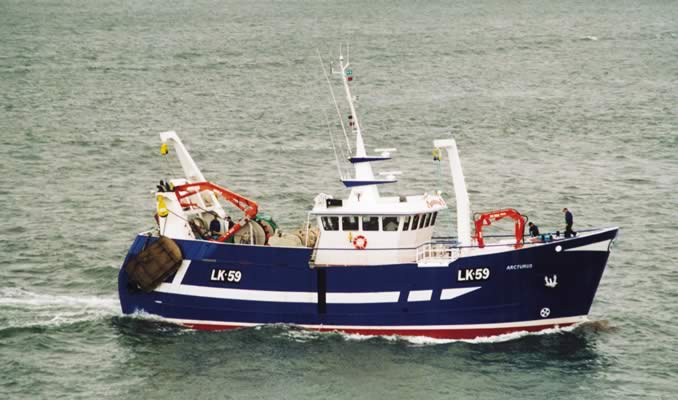

Illustration Sharon Rose Arcturus
