27.00m Twin RigTrawler

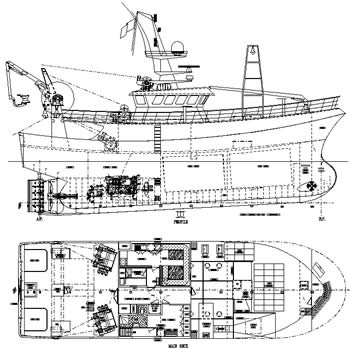

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
27.00m
Length B.P.

23.28m
Breadth Mld.
8.00m
Depth Mld.
4.10m

Main Engine
1200hp @ 1200rpm
Propeller Diameter
2450mm in Nozzle
Bollard Pull
18 tonne


DECK MACHINERY
CAPACITIES
3 x Split Winches
Auxiliary Winch
3 x Split Net Drums
Gilson/Anchor Winch
Power Block & Crane
Dog Rope Winch

Oil Fuel
53,000 litres
Fresh Water
9,700 litres
Fish Room
183 cu.m

Crew
10 men
LICENCE REQUIREMENTS
Tonnage
252 GRT

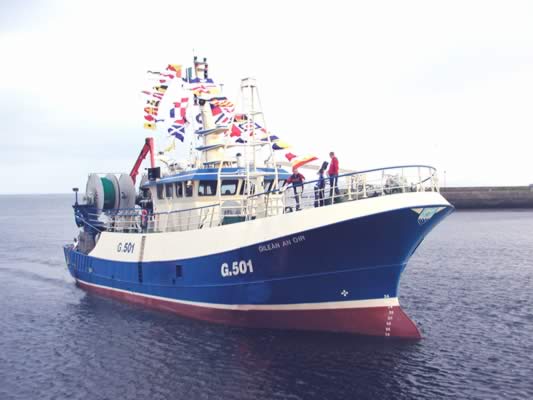

Illustration  Oilean An Oir
