17.00m Twin RigTrawler

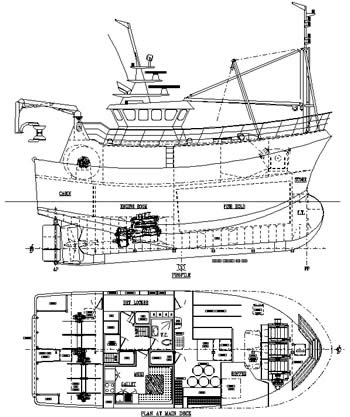

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
17.00m
Length B.P.
14.35m
Breadth Mld.
6.70m
Depth Mld.
3.60m

Main Engine
500hp @ 1800rpm
Propeller Diameter
1900mm in Nozzle
Bollard Pull
8 tonne


DECK MACHINERY
CAPACITIES
3 Barrel Trawl Winch
Unloading Winch
2 x Split Net Drums
Gilson Winch


Oil Fuel
17,000 litres
Fresh Water
7,000 litres
Fish Room
70 cu.m

Crew
6 men
LICENCE REQUIREMENTS
Tonnage
130 GRT
VCU's
280 Units



Illustration
