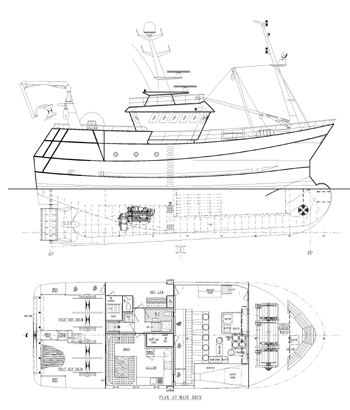

22m Twin RigTrawler

PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
22.00m
Length B.P.
19.00m
Breadth Mld.
7.80m
Depth Mld.
4.10m

Main Engine
1x 750 @ 1800 RPM
Propeller Diameter
1x 2000mm in Nozzle
Bollard Pull
11 tonnes
Bow Thruster
0.6 T

DECK MACHINERY
CAPACITIES
1x 3 Drum Trawl Winch - 25 T
2x Single Net Drums - 10 T
1x Gilson Winch - 5.7 T
1x Power Block Crane - 13 Tm
1x Unloading Crane  - 8 Tm


Oil Fuel
26,000 litres
Fresh Water
5,000 litres
Fish Room
105 cu.m

Crew
6 men
