19.00m Twin RigTrawler

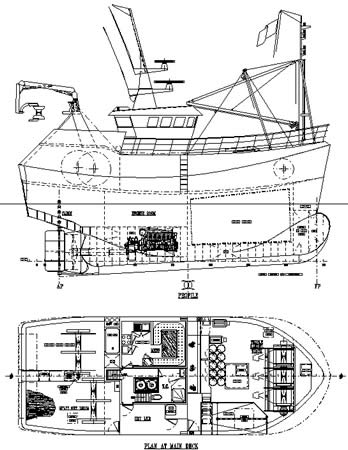

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
19.00m
Length B.P.
15.70m
Breadth Mld.
7.20m
Depth Mld.
4.10m

Main Engine
700hp @ 1800rpm
Propeller Diameter
2100mm in Nozzle
Bollard Pull
11 tonne


DECK MACHINERY
CAPACITIES
3 Barrel Trawl Winch
Unloading Winch
2 x Split Net Drums
Gilson Winch
Power Block & Crane

Oil Fuel
25,500 litres
Fresh Water
3,000 litres
Fish Room
88 cu.m

Crew
8 men
LICENCE REQUIREMENTS
Tonnage
184 GRT
VCU's
370 Units


Illustration   Green Isle
