21.00m Twin RigTrawler

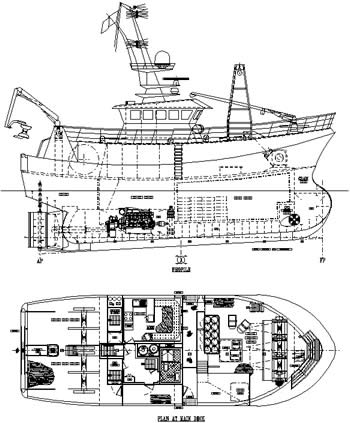

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
21.00m
Length B.P.
18.90m
Breadth Mld.
7.40m
Depth Mld.
3.90m

Main Engine
700hp @ 1800rpm
Propeller Diameter
2100mm in Nozzle
Bollard Pull
11 tonne


DECK MACHINERY
CAPACITIES
3 Barrel Trawl Winch
Unloading Winch
2 x Split Net Drums
Gilson Winch
Power Block & Crane

Oil Fuel
28,000 litres
Fresh Water
3,000 litres
Fish Room
95 cu.m

Crew
8 men
LICENCE REQUIREMENTS
Tonnage
175 GRT
VCU's
385 Units


Illustration
