22.65m Twin RigTrawler

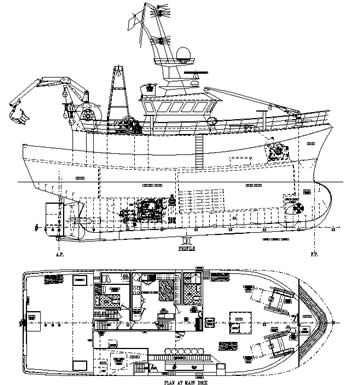

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
22.65m
Length B.P.
18.65m
Breadth Mld.
7.70m
Depth Mld.
4.20m

Main Engine
999hp @ 1800rpm
Propeller Diameter
2200mm in Nozzle
Bollard Pull
15 tonne


DECK MACHINERY
CAPACITIES
3 x Split Winches
Unloading Winch
2 x Split Net Drums
Gilson Winch
Power Block & Crane

Oil Fuel
29,000 litres
Fresh Water
8,400 litres
Fish Room
136 cu.m

Crew
7 men
LICENCE REQUIREMENTS
Tonnage
201 GRT

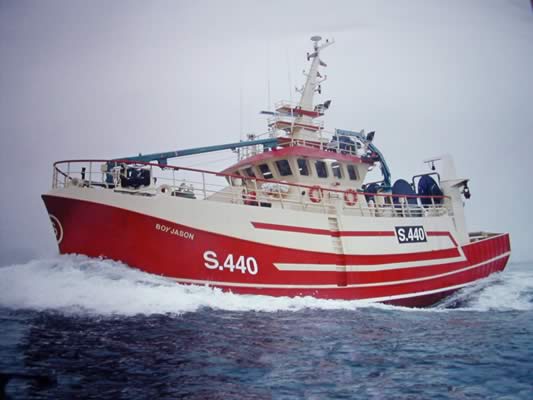

Illustration  Boy Jason
