23.00m Twin RigTrawler

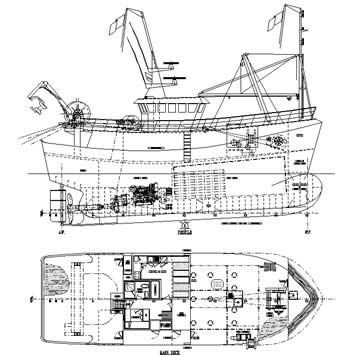

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
23.00m
Length B.P.

20.10m
Breadth Mld.
7.50m
Depth Mld.
4.10m

Main Engine
999hp @ 1800rpm
Propeller Diameter
2400mm in Nozzle
Bollard Pull
15 tonne


DECK MACHINERY
CAPACITIES
3 x Split Winches
Unloading Winch
2 x Single Net Drums
Anchor/Gilson Winch
Power Block & Crane

Oil Fuel
30,000 litres
Fresh Water
4,500 litres
Fish Room
140 cu.m

Crew
8 men
LICENCE REQUIREMENTS
Tonnage
201 GRT

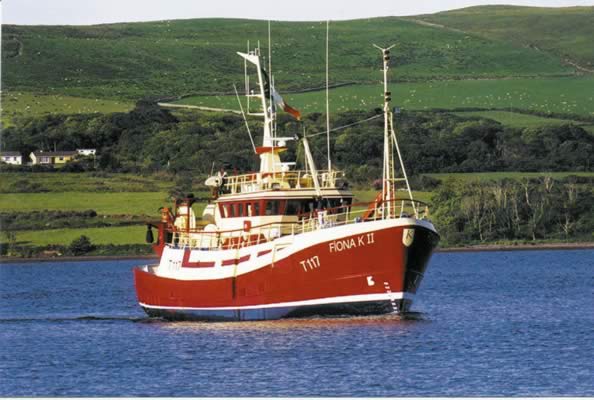

Illustration Fiona K II
