8.00m Potter

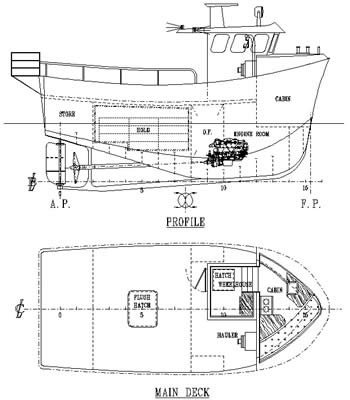

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
7.95m
Length B.P.
6.90m
Breadth Mld.
3.60m
Depth Mld.
1.95m

Main Engine
80hp @ 1800rpm
Propeller Diameter
850mm
Bollard Pull
n/a


DECK MACHINERY
CAPACITIES
Hauler




Oil Fuel
2,000 litres
Fresh Water
200 litres
Fish Room
8 cu.m
Crew
2 men

LICENCE REQUIREMENTS
Tonnage
5.6 GRT
VCU's
56 Units




8.00m Potter
