14.00m Forward Wheelhouse Trawler

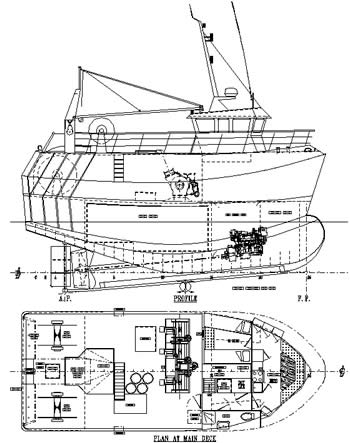

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
14.00m
Length B.P.
11.00m
Breadth Mld.
5.50m
Depth Mld.
3.20m

Main Engine
400hp @ 1800rpm
Propeller Diameter
1500mm in Nozzle
Bollard Pull
6 tonne


DECK MACHINERY
CAPACITIES
3 Barrel Trawl Winch
4 x Single Net Drums
Power Block & Crane


Oil Fuel
7,700 litres
Fresh Water
600 litres
Vivier Tank
42 cu.m
Crew
4 men

LICENCE REQUIREMENTS


Tonnage
32 GRT
VCU's
210 Units




Illustration   Staronia II
Providence II  Golden West II
