9.95m Forward Wheelhouse Trawler

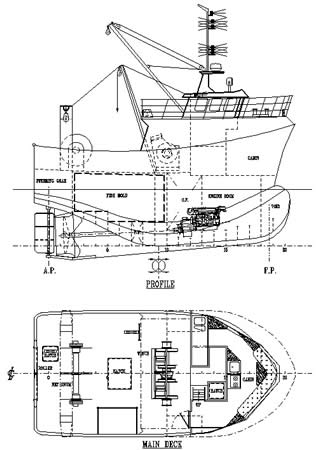

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
9.95m
Length B.P.
8.40m
Breadth Mld.
4.80m
Depth Mld.
2.80m

Main Engine
250hp @ 1800rpm
Propeller Diameter
1200mm in Nozzle
Bollard Pull
4 tonne


DECK MACHINERY
CAPACITIES
2 Barrel Trawl Winch
Split Net Drum
Power Block & Crane


Oil Fuel
5,400 litres
Fresh Water
500 litres
Fish Room
21 cu.m
Crew
3 men

LICENCE REQUIREMENTS



Tonnage
13 GRT
VCU's
130 Units

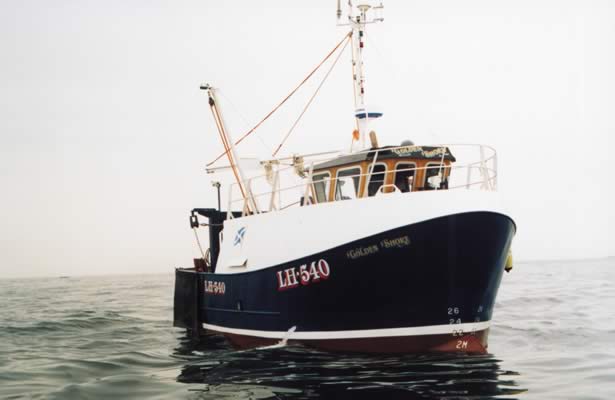

Illustration  Golden Shore
