9.95m Forward Wheelhouse Trawler/Scalloper

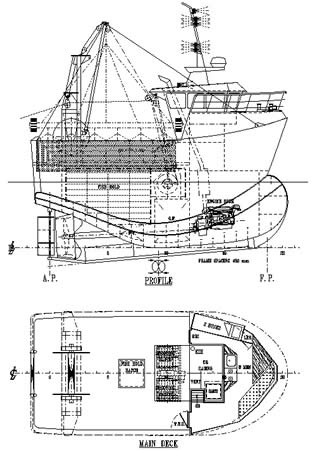

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
9.95m
Length B.P.
8.40m
Breadth Mld.
4.80m
Depth Mld.
3.20m

Main Engine
300hp @ 1800rpm
Propeller Diameter
1500mm in Nozzle
Bollard Pull
5 tonne


DECK MACHINERY
CAPACITIES
4 Barrel Beam Trawl Winch
Split Net Drum
Power Block & Crane


Oil Fuel
5,400 litres
Fresh Water
600 litres
Fish Room
28 cu.m
Crew
2 men

LICENCE REQUIREMENTS



Tonnage
16 GRT
VCU's
150 Units




Illustration
