8.00m Fisher

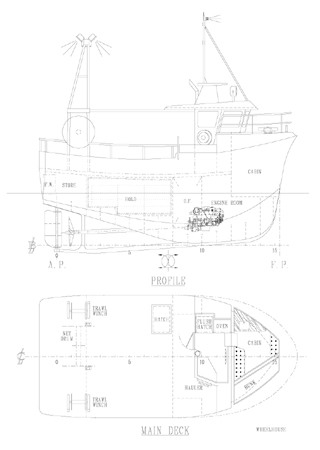

8.00m Fisher GA
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
8.00m
Length B.P.
6.90m
Breadth Mld.
3.80m
Depth Mld.
1.95m

Main Engine
170 Hp @ 2200 rpm
Propeller Diameter
850mm 4 Blade



DECK MACHINERY
CAPACITIES
2x Trawl Winches
Split Net Drum
Hauler

Oil Fuel
930 litres
Fresh Water
215 litres
Fish Room
8 cu.m
Crew
2 men



 8.00m Fisher Profile
