13.00m Catamaran Scalloper / Twin Rig Trawler

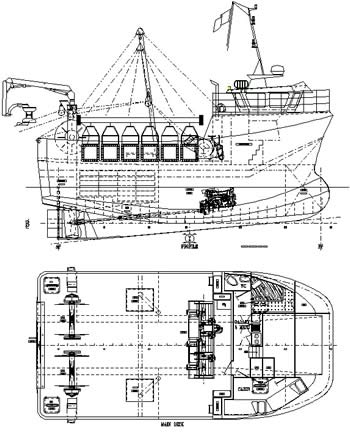

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
13.00m
Length B.P.
11.55m
Breadth Mld.
6.50m
Depth Mld.
2.60m

Main Engine
2 x 200hp @ 1800rpm
Propeller Diameter
1100mm in Nozzle
Bollard Pull
5 tonne


DECK MACHINERY
CAPACITIES
3 Barrel Trawl Winch
2 x Net Drums
Power Block & Crane
2 x Topping Winches

Oil Fuel
5,000 litres
Fresh Water
600 litres
Fish Room
14 cu.m
Crew
4 men

LICENCE REQUIREMENTS


Tonnage
21 GRT
VCU's
220 Units




Illustration
