12.00m Workboat

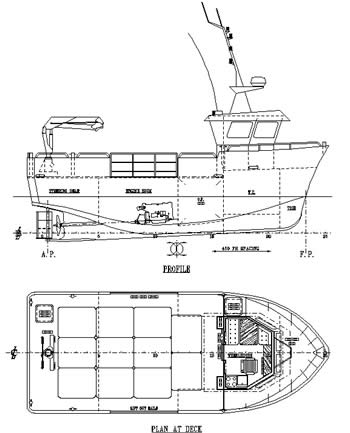

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
12.00m
Length B.P.

10.25m

Breadth Mld.
4.80m
Depth Mld.
2.20m

Main Engines
200hp @ 1800rpm
Propeller Diameter
800mm


DECK MACHINERY
CAPACITIES
8TM Knuckle Boom Crane


Oil Fuel
4,000 litres
Fresh Water
200 litres
Deck Cargo
11,000 kg
Illustration Johanna
