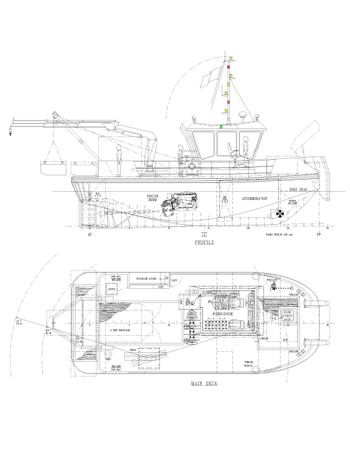

14.00m Workboat


PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
14.00m
Length B.P.
13.00m
Breadth Mld.
5.70m
Depth Mld.
2.70m

Main Engine

2x Scania DI 12 59M 10-45J

350hp @ 1800 rpm

Gearbox
Twin Disc MGX-5114
Ratio
4.59:1
Propeller
Fixed - Nozzle
Propeller Diameter
1300 mm
Bollard Pull
9.5 Tonnes
DECK MACHINERY
CAPACITIES
3x 7 Ton Winches
Deck Crane
Windlass


Oil Fuel
4200 Lts
Fresh Water
200 Lts
Crew
2
Water Ballast
9500 Lts








Click to open 3d pdf

Adobe Reader 8.0 or higher required

File Size 4.8 MB

(opens in new window)

May take some time to become active

when available press play
