14.00m Workboat

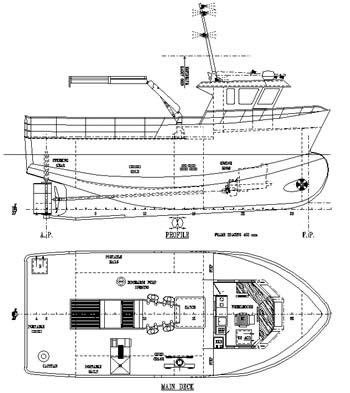

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
14.00m
Length B.P.

12.00m

Breadth Mld.
5.80m
Depth Mld.
3.20m

Main Engines
400hp @ 1800rpm
Propeller Diameter
1200mm


DECK MACHINERY
CAPACITIES
8TM Knuckle Boom Crane
Fish Pump & Harvesting Equipment
Blow Feeder
Oil Fuel
6,600 litres
Fresh Water
400 litres
Fish Tank
51 cu.m

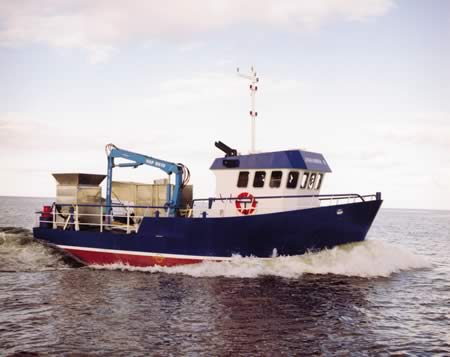

Illustration Joanna G
