14.95m Landing Craft Workboat

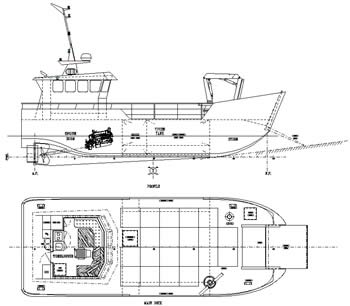

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
14.95m
Length B.P.

13.15m

Breadth Mld.
5.60m
Depth Mld.
2.10m
Main Engines
2 x 170hp @ 2500rpm
Propeller Diameter
2 x 900mm


DECK MACHINERY
CAPACITIES
14TM Knuckle Boom Crane


Oil Fuel
3,800 litres
Fresh Water
240 litres
Fish Tank
30 cu.m
Deck Cargo
20,000 kg
Illustration

Emma
Julie Anne
