15.00m Catamaran Workboat

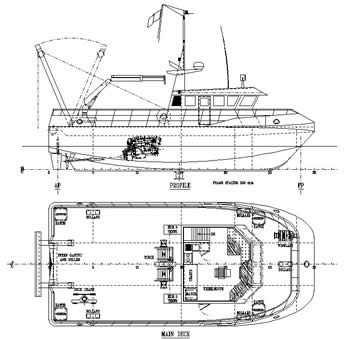

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
15.00m
Length B.P.

14.25m
Breadth Mld.
7.00m
Depth Mld.
2.40m
Main Engines
2 x 300hp @ 2000rpm
Propulsion
Waterjets




DECK MACHINERY
CAPACITIES
14TM Knuckle Boom Crane
2 Drum Hydraulic Winch

Oil Fuel
6,000 litres
Fresh Water
240 litres
Deck Cargo
20,000 kg
Illustration
