24.00m Support Craft

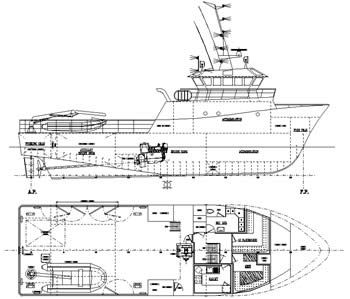

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
24.00m
Length B.P.

21.00m

Breadth Mld.
7.00m
Depth Mld.
3.20m
Main Engines
2 x 800hp @ 1600rpm
Propeller
2 x 1500mm




DECK MACHINERY
CAPACITIES
Crane
Winch
Anchor Windlass

Oil Fuel
20,000 litres
Fresh Water
5,000 litres
Cargo
40,000 kg
Illustration
