26.00m Dive Support Craft

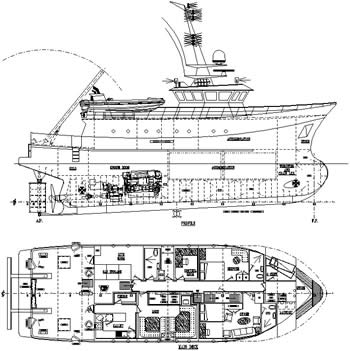

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
26.00m
Length B.P.

22.50m

Breadth Mld.
7.80m
Depth Mld.
4.29m
Main Engines
1450hp @ 1000rpm
Propeller
2300mm




DECK MACHINERY
CAPACITIES
A Frame
Capstan Winches (2)
Anchor Windlass

Oil Fuel
45,000 litres
Fresh Water
11,000 litres
Crew
16 men
Illustration
