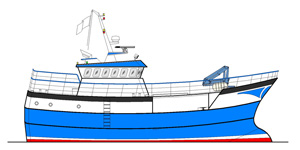

18.00m Vivier Crabber

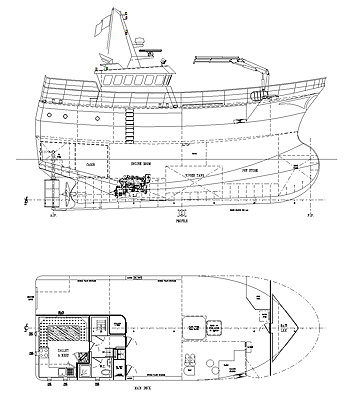

18.00m Vivier Crabber GA
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
18.00m
Length B.P.

16.00m
Breadth Mld.
6.50m
Depth Mld.
3.50m

Main Engine
400hp
Propeller Diameter
1500mm



DECK MACHINERY
CAPACITIES
Hauler
Deck Crane
Oil Fuel
15,000 litres
Fresh Water
5,000 litres
Vivier Tank Capacity
40 cu.m

Crew

6 men
18.00m Vivier Crabber
