17.60m Vivier Crabber

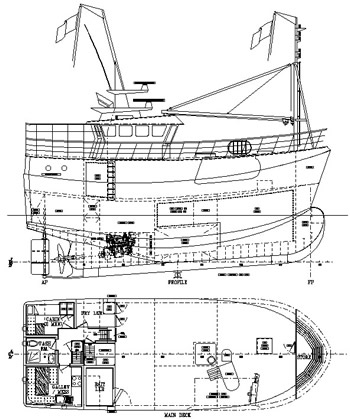

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
17.60m
Length B.P.

15.25m
Breadth Mld.
6.40m
Depth Mld.
3.60m

Main Engine
400hp @1800rpm
Propeller Diameter
1600mm
Bollard Pull
n/a


DECK MACHINERY
CAPACITIES
Hauler
Unloading Winch
Oil Fuel
14,000 litres
Fresh Water
3000 litres
Vivier Tank
38 cu.m

Crew
6 men
LICENCE REQUIREMENTS
Tonnage
130 GRT
VCU's
250 Units



Illustration
