23.00m Vivier Crabber

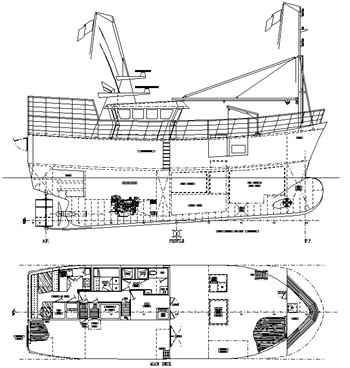

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
23.00m
Length B.P.

19.90m
Breadth Mld.
7.20m
Depth Mld.
3.85m

Main Engine
615hp @1800rpm
Propeller Diameter
2000mm
Bollard Pull
n/a


DECK MACHINERY
CAPACITIES
Hauler
Unloading Winch
Oil Fuel
23,000 litres
Fresh Water
10,400 litres
Vivier Tank
48 cu.m

Crew
6 men
LICENCE REQUIREMENTS
Tonnage
204 GT
VCU's
388 Units

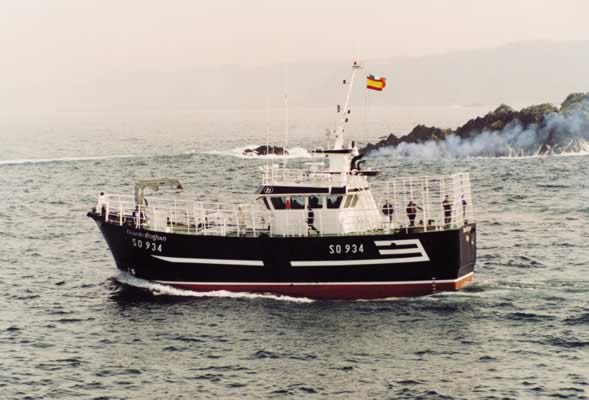

IllustrationNiamh Eoghan
