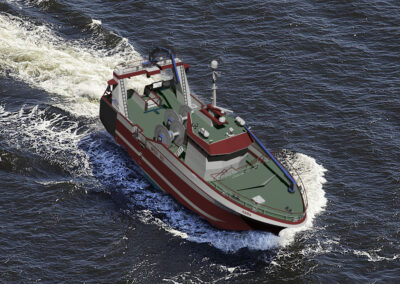

24.9m Fishing Trawler

Macduff Ship Design have the capabilities to produce VR walkthroughs of proposed vessel which can be viewed through some VR headsets. This type of design and development is great for clients who want to get a grasp of the vessels proportions way before any steel has been cut.

24.90m Fishing Trawler

Instructions for use:

Desktop: To look around the vessel, while the video Is paused or playing, click and drag on the screen to look around. Alternatively, the arrows at the top left of the screen can be used to look around.

Mobile: Follow the link on the top of the video to the YouTube app where you will be able to look around the vessel on your device.

Principle Dimensions

Length Overall:24.90 mLength Reg:21.95 mBreadth Mld:9.00 mDepth mld:4.10 m


Fresh Water:20000 LitresWater Ballast:4500 LitresShips Complement Crew:12Fish Hold:160 Cubic Meters


Bollard Pull:18.3 TSpeed:12 Knots

Propulsion Machinery

Main Engine Power :588 Kw @ 1600rpmPropeller Diameter:3000 mmPropeller Nozzle:yesDrive Type:ConventionalBow Thruster:YesBow Thruster Make:KORT

Deck Machinery

Split Trawl Winches
Split Net Drums
Gilson Winch
Power Block Crane
Power Block Head
Landing Crane

Auxilliary Equipment

No. of Aux:2

220 kVA John Deere WDJ 220
