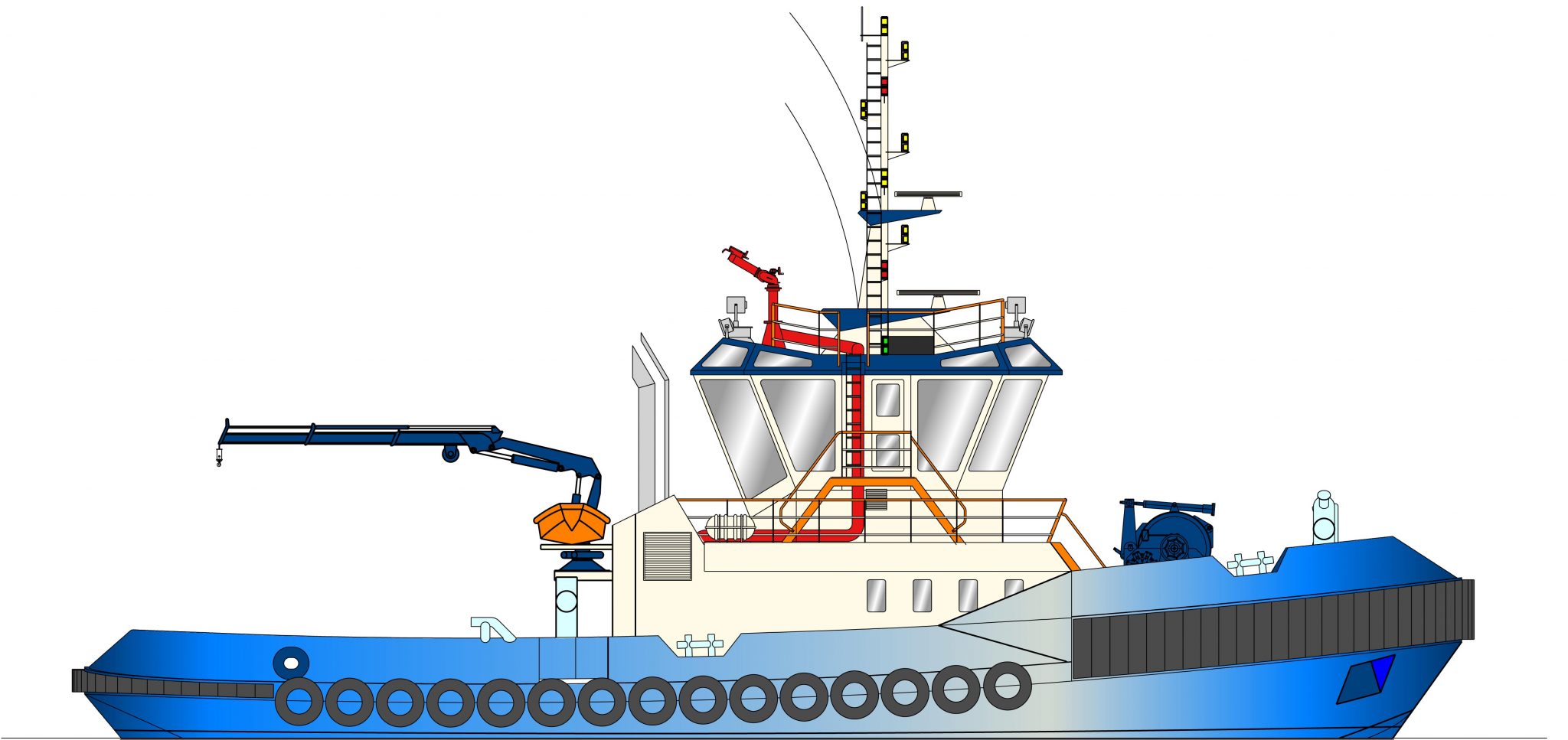

Jazan 4

Length Overall: 30.00m

Vessel Type: ASD Tug, Harbour Tug

Principle Dimensions

Length Overall: 30.00 m Length Reg: 25.50 m Breadth Mld: 11.00 m Depth Mld: 5.00 m Max Draft: 5.30 m

Capacities

Oil Fuel: 160000 Litres Fresh Water: 30000 Litres Water Ballast: 16600 Litres Ships Complement Crew: 9

Performance

Bollard Pull: 65 T Speed: 13 Knots

Propulsion Machinery

Main Engine Power : 1330 Kw @ 900rpm Propeller Diameter: 2100 mm Drive Type: ASD

Deck Machinery

Deck Winch Ibercisa Towing Winch 130 T Brake Deck Crane 1.5 T at 8.0m Hydraulic Palfinger 15500MA Tow Hook Mampaey DCX 50/65 65 T Fi Fi 1200 cu.m/ Hr with 2 monitors
