Jeddah 44 & 45

Length Overall: 25.00m

Vessel Type: ASD Tug, Harbour Tug

Principle Dimensions

Length Overall: 25.00 m Length Reg: 23.25 m Breadth Mld: 10.50 m Depth Mld: 4.75 m Max Draft: 5.50 m

Capacities

Oil Fuel: 83000 Litres Fresh Water: 15000 Litres Water Ballast: 32000 Litres

Performance

Bollard Pull: 50 T Speed: 12 Knots

Propulsion Machinery

Main Engine Power : 883 Kw @ rpm Propeller Diameter: 2100 mm Drive Type: ASD

Deck Machinery

Deck Winch Ibercisa Towing winch 90 T Brake Deck Crane 1.5 T at 8.0m Hydraulic Palfinger PK 15500MA Tow Hook Mampaey DCX 30/45 45 T Fi Fi 600 cu.m/ Hr with 2 monitors

Video

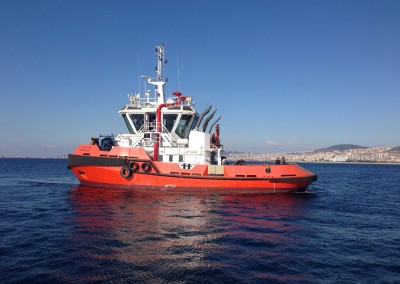

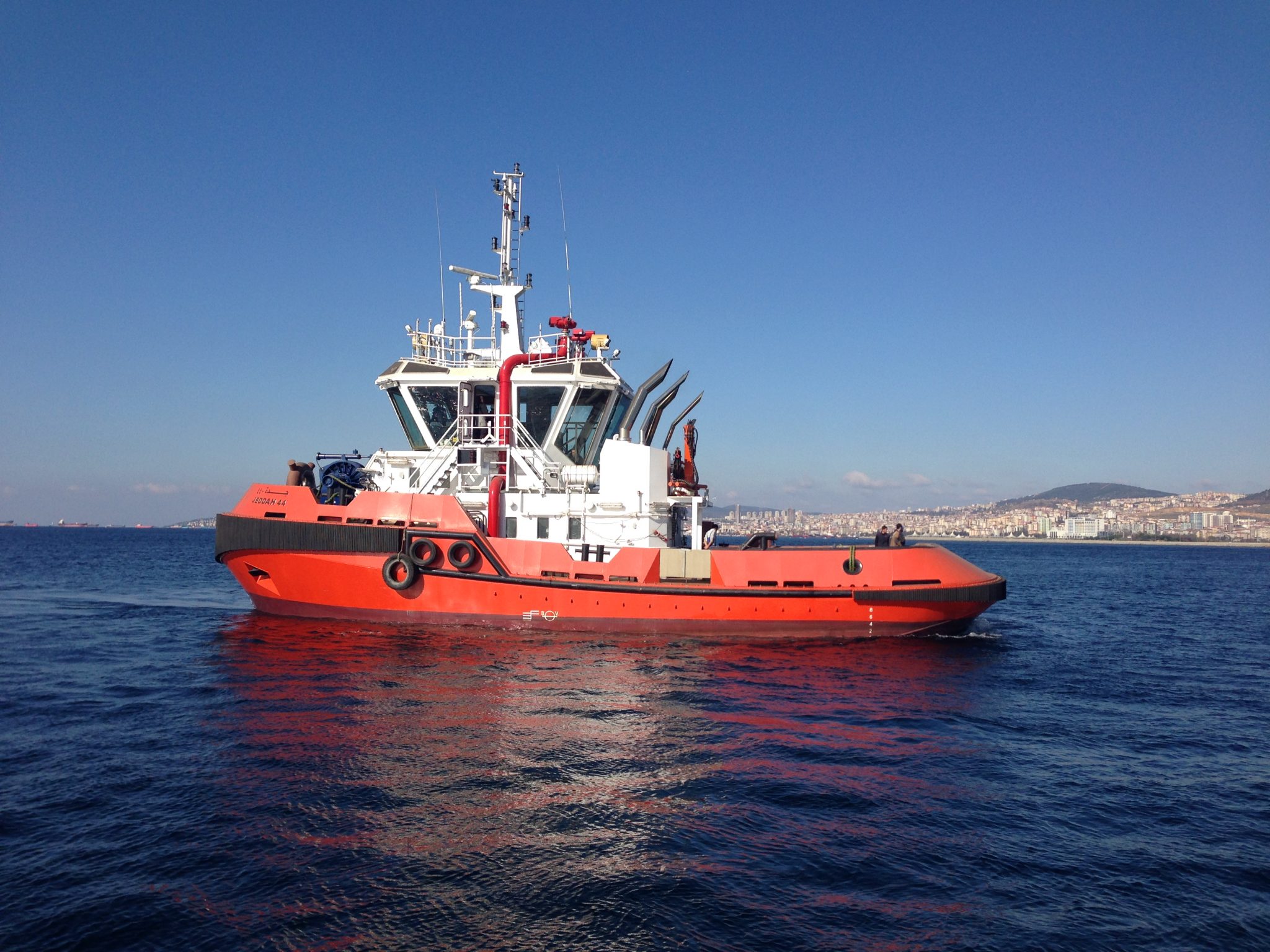

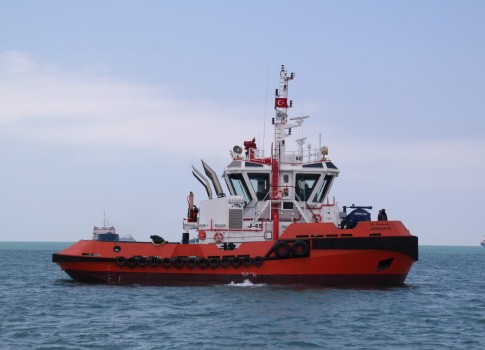

Other Images
