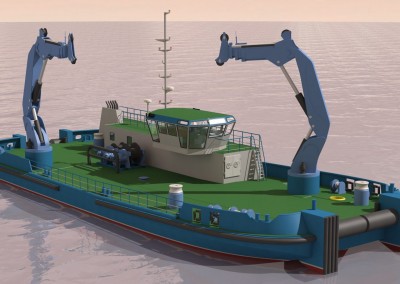

London Titan

Length Overall: 36.50m

Vessel Type: Multi Mac

Multi Mac

Principle Dimensions

Length Overall: 36.50 m Length Reg: 34.00 m Breadth Mld: 13.50 m Depth Mld: 3.50 m Max Draft: 2.20 m

Capacities

Oil Fuel: 72000 Litres Fresh Water: 8000 Litres Water Ballast: 167000 Litres Ships Complement Crew: 12

Performance

Bollard Pull: 30 T Speed: 12 Knots

Propulsion Machinery

Main Engine Power : 1000 Hp @ 1600rpm Propeller Diameter: 1500 mm Propeller Nozzle: Yes Drive Type: Conventional Bow Thruster: Yes Bow Thruster Make: Kort KT 250

Deck Machinery

6x Tugger Winches, 2x Capstans, 1x Anchor Winch.
Dredge 'A' Frame Aft.
Removable Lifting 'A' Fram Fwd.
Guide Pins Aft.
Spud Legs, 1 fwd, 1 aft.

Deck Winch NSW - Main Towing / Lifting 120 T Auxiliary Winch 20 T Deck Crane 2x SMT supply, KBT 11 T at 20.1m Fore & Aft Rollers 170 T SWL

Auxilliary Equipment

No. of Aux: 3

2x Caterpillar C18 with Hydraulic pumps and 169 Kw alternators
1x Caterpillar C4.4 harbour set - 68 Kw
