TURAS A BHRADAIN

Aug 16, 2023

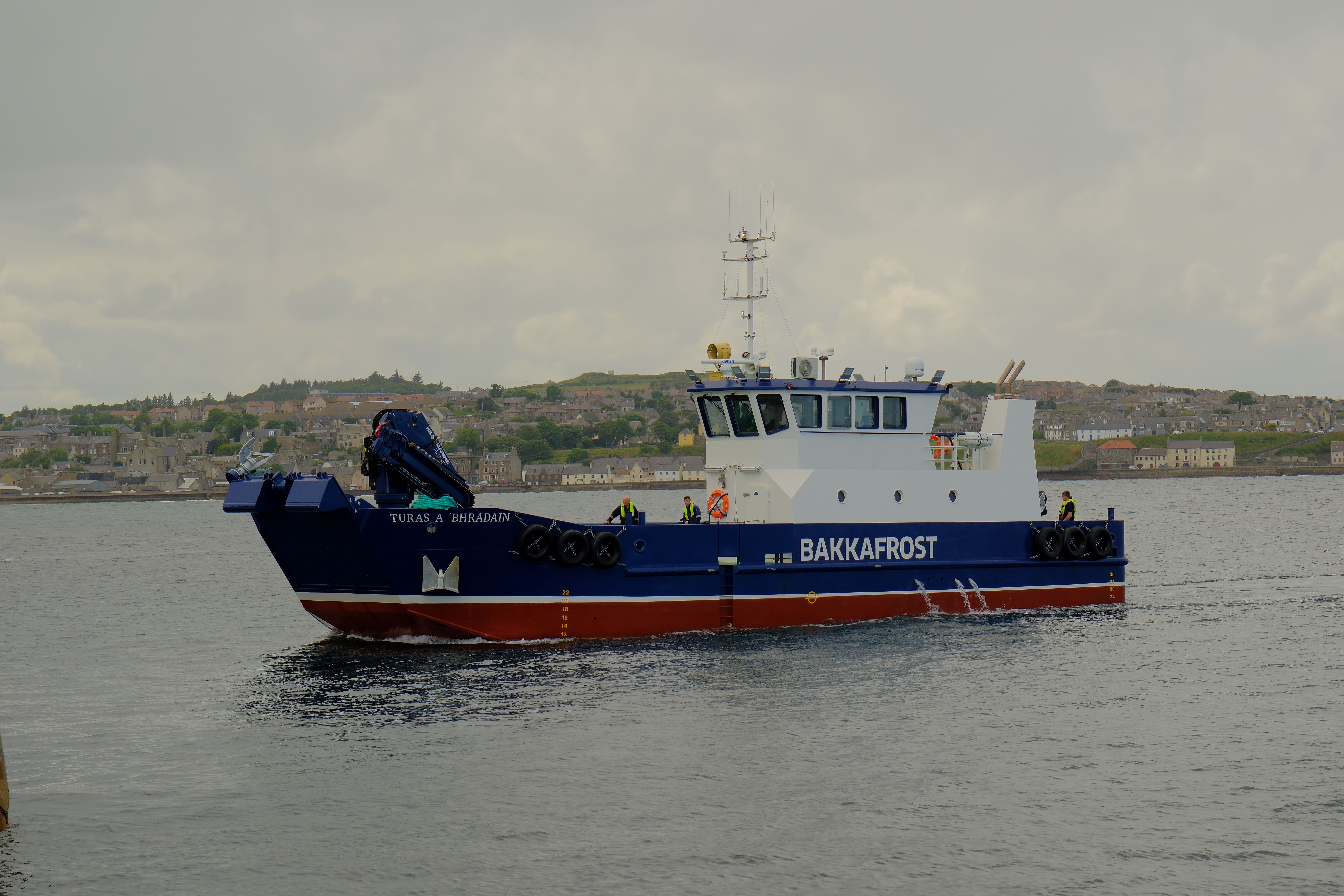

Turas A Bhradain

Length Overall: 24.0m

Vessel Type: Aquaculture, Landing Craft

Design Search

Download Data Sheet

Principle Dimensions

Length Overall: 24.0 m Length Reg: 22.27 m Breadth Mld: 9.00 m Depth mld: 2.4 m Max Draft: 1.9 m

Capacities

Oil Fuel: 14000 Litres Fresh Water: 5000 Litres Ships Complement Crew: 4

Performance

Bollard Pull: 15 T

Propulsion Machinery

Main Engine Power : 373 Kw @ 2000rpm Propeller Diameter: 1500 mm Propeller Nozzle: yes Drive Type: Conventional Bow Thruster: No Stern Thruster: Yes

Deck Machinery

Deck Crane Fwd
Deck Crane Aft
x3 Capstan
Anchor winch

Video

Other Images
