38.80m Tug – Concept Design

May 15, 2018

Concept Design

Length Overall: 38.80m

Vessel Type: Conventional Tug, Offshore Tug

Design Search

Download Data Sheet

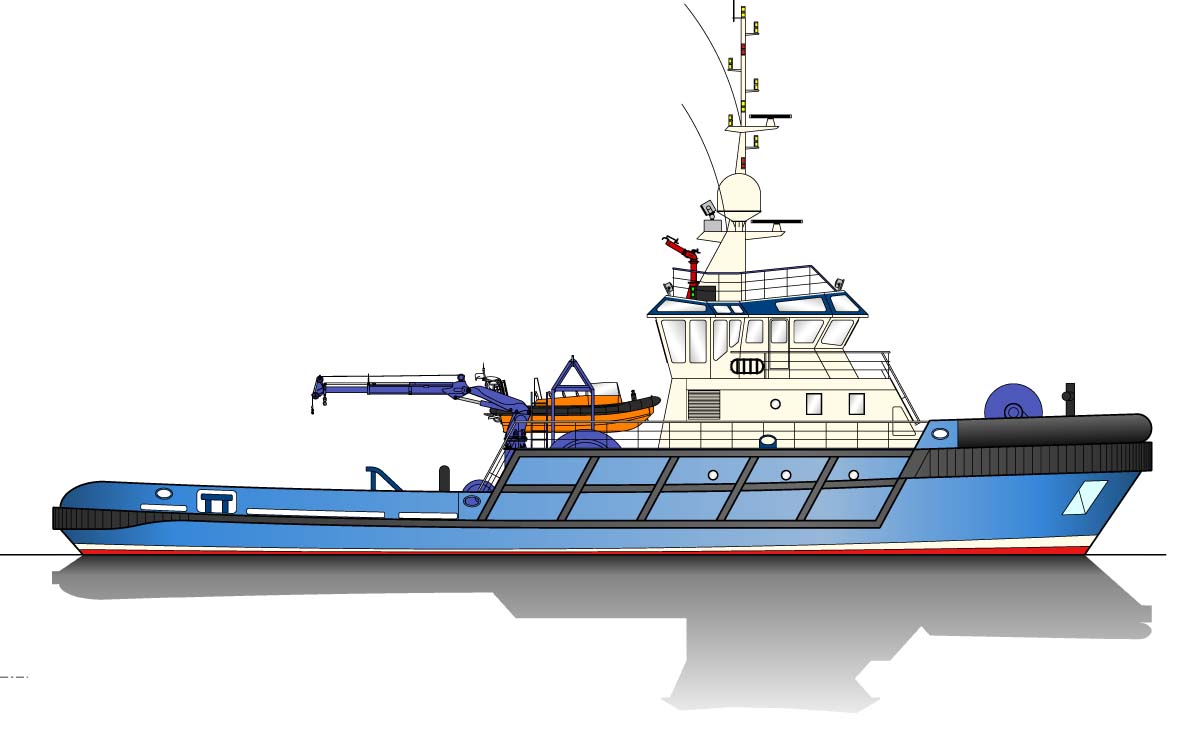

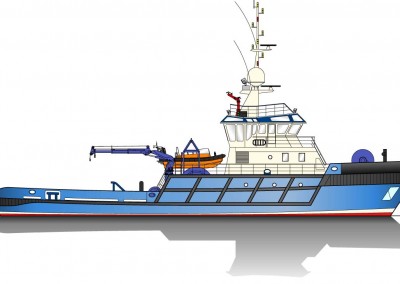

38.00m Tug Profile

Principle Dimensions

Length Overall: 38.80 m Length Reg: 32.50 m Breadth Mld: 11.50 m Depth Mld: 5.25 m Max Draft: 4.82 m

Capacities

Oil Fuel: 165000 Litres Fresh Water: 36000 Litres

Performance

Bollard Pull: 60 T

Propulsion Machinery

Main Engine Power : 2100 Hp @ rpm Propeller Diameter: 900 mm Propeller Nozzle: Yes Drive Type: Conventional Bow Thruster: Yes

Deck Machinery

Deck Crane
Tow Pins

Winch Aft 30 T Winch Aft 30 T Tugger Winch 10 T Tow Hook 70 T
