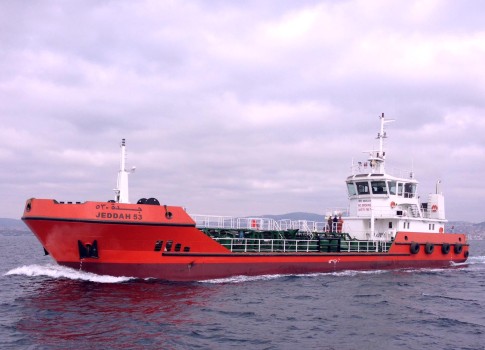

Jeddah 53 and Jazan 8

Length Overall: 46.00m

Vessel Type: Other Sectors

Principle Dimensions

Length Overall: 46.00 m Length Reg: 41.60 m Breadth Mld: 10.50 m Depth mld: 3.50 m Max Draft: 2.87 m


Oil Fuel: 35000 Litres Fresh Water: 15000 Litres Water Ballast: 331801 Litres Ships Complement Crew: 4


Speed: 9.6 Knots

Propulsion Machinery

Main Engine Power : 339 Kw @ rpm Propeller Diameter: 1100 mm Drive Type: ASD

Deck Machinery

Deck Crane Hydraulic 2.5 T at 8m Auxiliary Winches Capsatn and Anchor Windlass


Other Images
